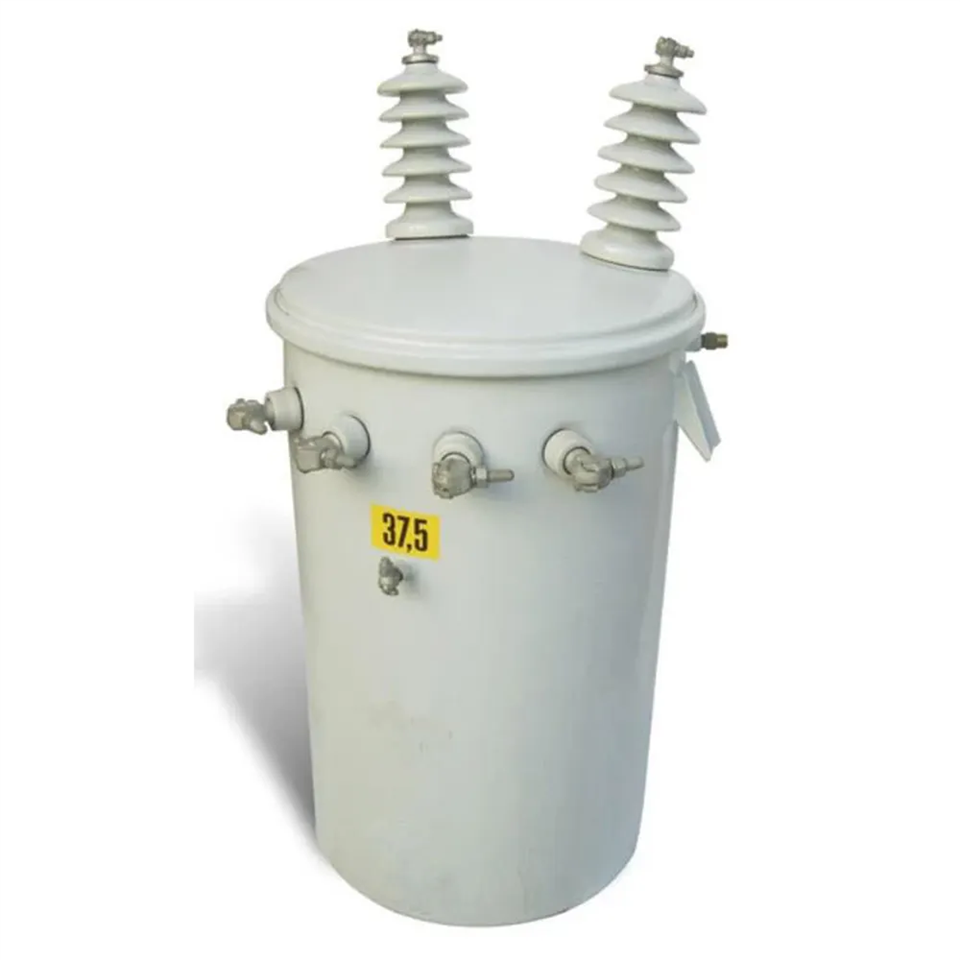

Single Phase Pole Mounted Transformer 37.5KVA 19.92KV

YAWEI supplies power pole mounted transformer. Including single phase and three phase pole mounted transformer. It can reduce the length of low-voltage distribution lines, reduce line losses, and improve the quality of power supply. The transformer is designed with high efficiency and energy-saving coil core structure. The transformer is characterized by small volume, small infrastructure investment, reduced radius of low-voltage power supply and more than 60% loss of low-voltage line. Adopts fully sealed structure, with strong overload capacity, high reliability of continuous operation and simple maintenance. It is suitable for rural power grid, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption, and can also be used for energy-saving transformation of railway and urban power grid. Our transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

As a part of the power distribution system, single-phase transformer mainly plays the role of voltage conversion and electrical isolation. It can convert high voltage electricity into low voltage electricity suitable for household and commercial use, ensuring a stable supply of electricity. Meanwhile, the isolation function of the transformer can protect users from electric shock and equipment from the impact of grid faults. In addition, single-phase transformer can also help reduce losses during power transmission and improve the efficiency of the power system. In some cases, it can also be used to balance the load of the power grid, ensuring even distribution of electricity. Through these functions, single-phase transformer is crucial for ensuring the safe, reliable, and efficient operation of the power system.

YAWEI is a leading manufacturer of transformers certified by CSA, UL, and cUL. We specialize in producing high-quality 37.5 kVA single-phase pole mounted transformers that meet the stringent standards of ANSI, CSA, IEEE, DOE, and IEC. These transformers are designed to cater to a wide range of applications, including utilities, rural areas, and power distribution systems. With a solid commitment to quality and reliability, YAWEI's transformers are trusted for superior performance and efficiency, making them an ideal choice for various power-related needs.

Primary Voltage: 19.92 kV;

Secondary Voltage Ratings: 120/240V;

CONNECTION TYPE: Ii0

Standards: IEEE C57.12.20, ANSI C57.12,DOE 2016,CSA C2.1&2.2 &CSA C802.1

Rated Power Ratings: Up to 167KVA

Primary Voltage: Up to 35KV

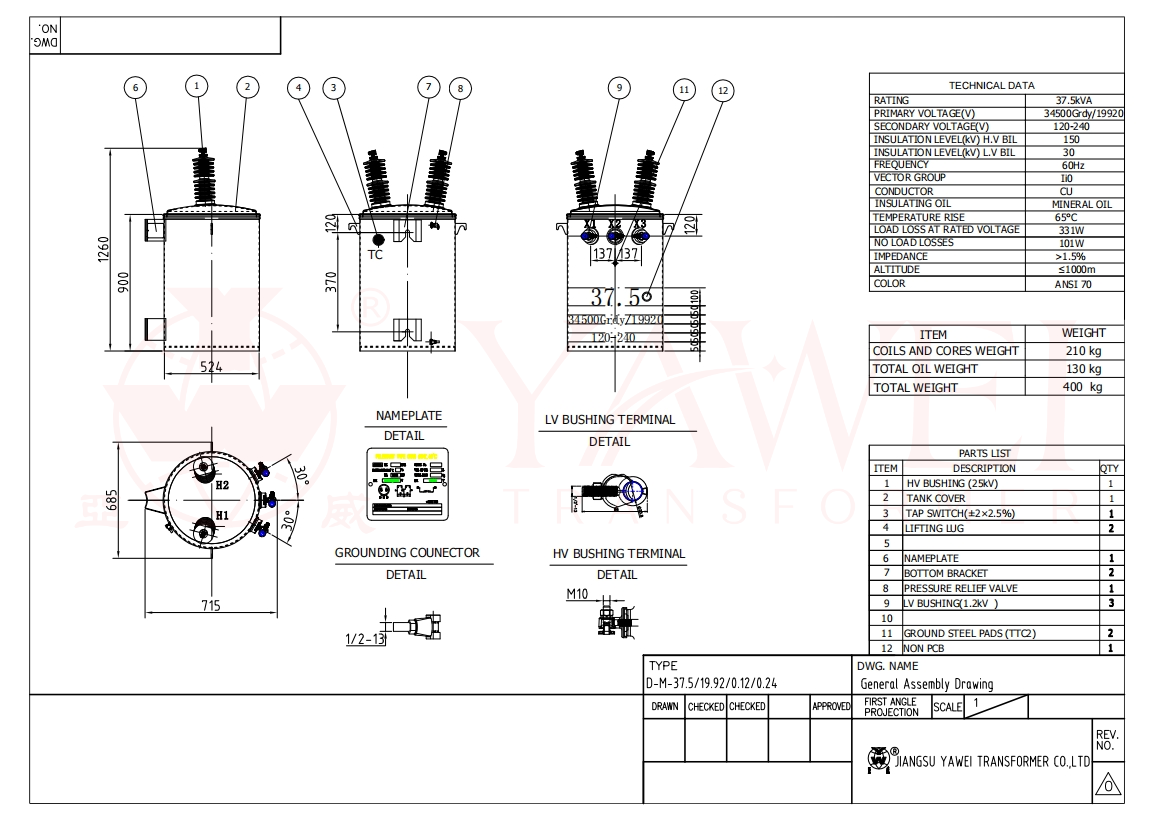

37.5kva 19.92/0.12/0.24kv Pole Mounted Transformer Drawing

1. Where is your main market?

We had exported our transformers to more than 30 countries in the world, our main market is North American & South American countries, Central Asian countries,African countries,etc.

2. Do you have any sales office ior maintenance team abroad?

We have sales offices and after-sales teams in USA, and in Mexico.

3. How long is your delivery time?

40 days after drawing confirmed by buyer for distribution transformers below 5000kva, larger transformers depend on the capacity and components, normally 30-90days ( with imported components)
